ModelEvaluatorPlot.compare

static ModelEvaluatorPlot.compare(df_eval, figsize=(6, 4), colors=None, alpha=0.05)[source]

Plot the paired model comparison as signed delta bars with CI whiskers.

Each bar is one model pair’s delta (score_a - score_b); bars are colored by sign, whiskers show the bootstrap CI, and a star marks a pair whose p_value is below alpha (a significant difference).

Added in version 1.1.0.

Parameters:

df_eval (pd.DataFrame, shape (n_pairs, 8)) – Comparison table from ModelEvaluator.eval() with columns model_a, model_b, metric, delta, delta_std, ci_low, ci_high, and p_value.
figsize (tuple, default=(6, 4)) – Figure dimensions (width, height) in inches.
colors (list of str of length 2, optional) – Colors for positive and negative deltas ([color_pos, color_neg]). Defaults to the package positive/negative colors.
alpha (float, default=0.05) – Significance level in (0, 1); pairs with p_value < alpha are starred.

Returns:

fig (Figure) – Figure object for the comparison plot.
ax (Axes) – Axes object of the delta bar chart.

See also

ModelEvaluator.eval(): the respective computation method.

Examples

ModelEvaluatorPlot.compare draws the paired comparison from ModelEvaluator.eval as signed delta bars with CI whiskers and significance stars. First, the dataset, feature matrix, evaluation, and comparison:

import aaanalysis as aa
aa.options["verbose"] = False  # Disable verbosity

# DOM_GSEC example dataset + a small feature set (see [Breimann25]_)
df_seq = aa.load_dataset(name="DOM_GSEC")
labels = df_seq["label"].to_list()
df_feat = aa.load_features(name="DOM_GSEC").head(20)

# Build the CPP feature matrix X
sf = aa.SequenceFeature()
df_parts = sf.get_df_parts(df_seq=df_seq)
X = sf.feature_matrix(features=df_feat["feature"], df_parts=df_parts)

me = aa.ModelEvaluator(models=["rf", "svm", "log_reg"], random_state=42, verbose=False)
df_eval = me.run(X, labels, n_rounds=3)
df_compare = me.eval(metric="mcc")

/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(
/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(
/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(
/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(
/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(
/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(
/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(
/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(
/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(
/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(
/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(
/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(
/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(
/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(
/Users/stephanbreimann/Programming/1Packages/aaanalysis/.venv/lib/python3.13/site-packages/sklearn/svm/_base.py:239: FutureWarning: The probability parameter was deprecated in 1.9 and will be removed in version 1.11. Use CalibratedClassifierCV(SVC(), ensemble=False) instead of SVC(probability=True)
  warnings.warn(

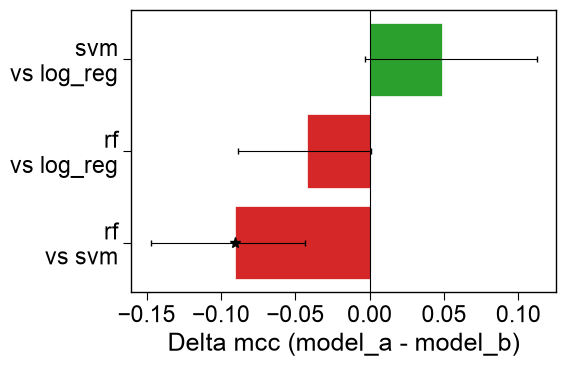

Plot the comparison table with a figsize, positive/negative colors, and a significance level alpha:

import matplotlib.pyplot as plt
aa.plot_settings()
fig, ax = aa.ModelEvaluatorPlot.compare(df_eval=df_compare, figsize=(6, 4),
                                        colors=["tab:green", "tab:red"], alpha=0.05)
plt.tight_layout()
plt.show()

../_images/me_plot_compare_1_output_3_0.png
