AAMutPlot.aa_comparison

AAMutPlot.aa_comparison(df_impact, from_aa, to_aa, top_n=20, ax=None, figsize=(6, 5))

Plot the per-scale signed delta for one amino acid substitution pair.

Bars are colored by sign (increase vs decrease) so the physicochemical direction of a single from_aa -> to_aa substitution is visible across the most-affected scales.

Parameters:

• df_impact (pd.DataFrame) – Substitution-impact table produced by AAMut.run().

• from_aa (str) – Substituted-from amino acid (single letter).

• to_aa (str) – Substituted-to amino acid (single letter).

• top_n (int, default=20) – Number of scales with the largest absolute delta to show.

• ax (Axes, optional) – Pre-defined Axes object to plot on. If None, a new one is created.

• figsize (tuple, default=(6, 5)) – Figure dimensions (width, height) in inches (used when ax is None).

Returns:

• fig (Figure) – Figure object containing the plot.

• ax (Axes) – Axes object of the amino acid comparison plot.

Notes

• Returned as a (fig, ax) pair (see AAMutPlot for the shared return contract).

Examples

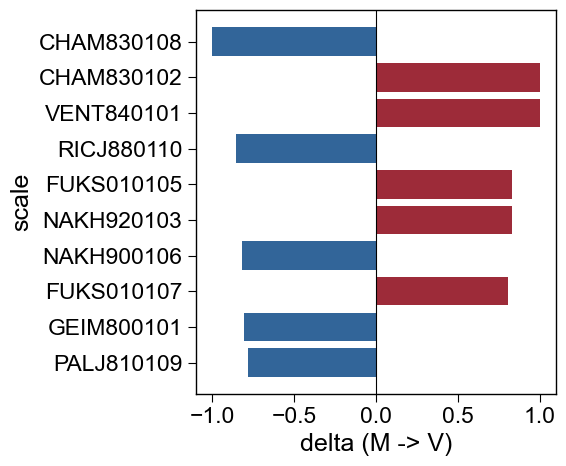

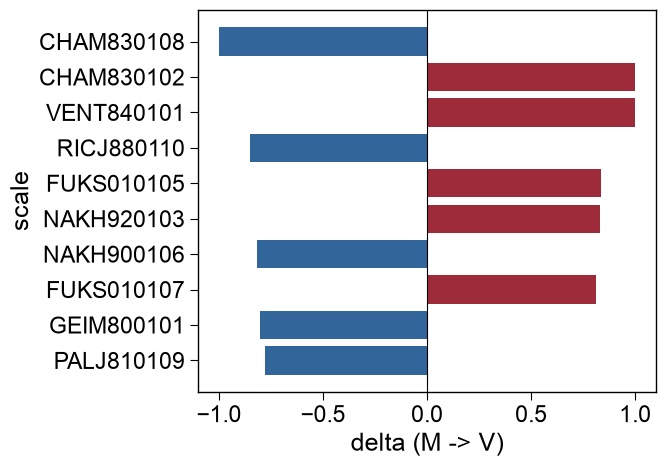

:meth:AAMutPlot.aa_comparison shows the signed per-scale delta of a single substitution pair (red = increase, blue = decrease).

import matplotlib.pyplot as plt
import aaanalysis as aa
aa.plot_settings()
df_impact = aa.AAMut().run(from_aa="M", to_aa="V")
aa.AAMutPlot().aa_comparison(df_impact=df_impact, from_aa="M", to_aa="V", top_n=10)
plt.tight_layout()
plt.show()
