SeqOptPlot.parallel_coordinates

SeqOptPlot.parallel_coordinates(df_pareto, objectives, ax=None, figsize=(7, 4), front_only=True, cmap='viridis_r')

Parallel-coordinates plot of a Pareto front over any number of objectives.

Each variant is a line across the objective axes (min-max normalized per objective), colored by non-dominated rank — the way to read trade-offs for > 3 objectives.

Parameters:

• df_pareto (pd.DataFrame) – Output of SeqOpt.run().

• objectives (list of str) – Objective columns to place on the parallel axes (in order).

• ax (matplotlib.axes.Axes, optional) – Axes to draw on. A new figure is created when None.

• figsize (tuple, default=(7, 4)) – Figure size when ax is None.

• front_only (bool, default=True) – If True, plot only the first (rank=0) front.

• cmap (str, default="viridis_r") – Matplotlib colormap name for the rank coloring.

Returns:

• fig (matplotlib.figure.Figure) – The figure.

• ax (matplotlib.axes.Axes) – The axes the lines were drawn on.

Examples

import numpy as np, pandas as pd
import matplotlib.pyplot as plt
from sklearn.ensemble import RandomForestClassifier
import aaanalysis as aa
aa.options["verbose"] = False

# Gamma-secretase (GSEC) substrate data + the bundled interpretable CPP feature set.
df_feat = aa.load_features(name="DOM_GSEC")           # 150 CPP features (with positions, feat_importance)
df_seq  = aa.load_dataset(name="DOM_GSEC", n=50)      # 100 TMD sequences, label 1 = GSEC substrate
labels  = df_seq["label"].to_list()

# A simple RandomForest substrate classifier on the CPP feature matrix.
sf = aa.SequenceFeature()
X = np.asarray(sf.feature_matrix(features=df_feat["feature"],
                                 df_parts=sf.get_df_parts(df_seq=df_seq),
                                 df_scales=aa.load_scales()), dtype=float)
model = RandomForestClassifier(n_estimators=100, random_state=0).fit(X, labels)

# Pick a NON-substrate as the wild-type and design a "super substrate": mutate its TMD to
# maximize the predicted substrate probability with as few mutations as possible.
wt = df_seq[df_seq["label"] == 0].iloc[[0]].reset_index(drop=True)
objectives = [("substrate", "max", "delta_pred"),     # raise P(GSEC substrate) (RF prediction shift)
              ("parsimony", "min", "n_mut")]          # with as few mutations as possible

objectives3 = [("substrate", "max", "delta_pred"),    # raise predicted substrate probability
               ("stability", "min", "delta_cpp"),     # keep the feature profile close to natural
               ("parsimony", "min", "n_mut")]         # few mutations
seqopt = aa.SeqOpt(mode="importance", model=model, target_class=1, random_state=42)
df_pareto = seqopt.run(df_seq=wt, df_feat=df_feat, objectives=objectives3,
                       pop_size=40, n_gen=20, n_mut_max=5, region="tmd")
aa.display_df(df_pareto, n_rows=10, show_shape=True)

DataFrame shape: (28, 9)

	entry	variant	n_mut	sequence_mut	substrate	stability	parsimony	rank	crowding
1	Q14802		0	MQKVTLGLLVFLAGF...PGETPPLITPGSAQS	0.000000	0.000000	0.000000	0	inf
2	Q14802	G52L+I55T+S58R+A59R	4	MQKVTLGLLVFLAGF...PGETPPLITPGSAQS	36.000000	7.264650	4.000000	0	inf
3	Q14802	V39P+A50K+I55V+S58R+A59R	5	MQKVTLGLLVFLAGF...PGETPPLITPGSAQS	30.000000	5.449390	5.000000	0	inf
4	Q14802	S58Q+A59R	2	MQKVTLGLLVFLAGF...PGETPPLITPGSAQS	21.000000	3.693250	2.000000	0	0.140833
5	Q14802	S58R	1	MQKVTLGLLVFLAGF...PGETPPLITPGSAQS	14.000000	1.549330	1.000000	0	0.138603
6	Q14802	I55V+S58Q+A59R	3	MQKVTLGLLVFLAGF...PGETPPLITPGSAQS	25.000000	3.969830	3.000000	0	0.135056
7	Q14802	S58V	1	MQKVTLGLLVFLAGF...PGETPPLITPGSAQS	8.000000	0.616080	1.000000	0	0.120829
8	Q14802	A50K+S58Q	2	MQKVTLGLLVFLAGF...PGETPPLITPGSAQS	8.000000	0.472060	2.000000	0	0.109567
9	Q14802	G52L+S58R+A59R	3	MQKVTLGLLVFLAGF...PGETPPLITPGSAQS	34.000000	6.589060	3.000000	0	0.093956
10	Q14802	G52W+S58R+A59R	3	MQKVTLGLLVFLAGF...PGETPPLITPGSAQS	31.000000	6.094060	3.000000	0	0.087474

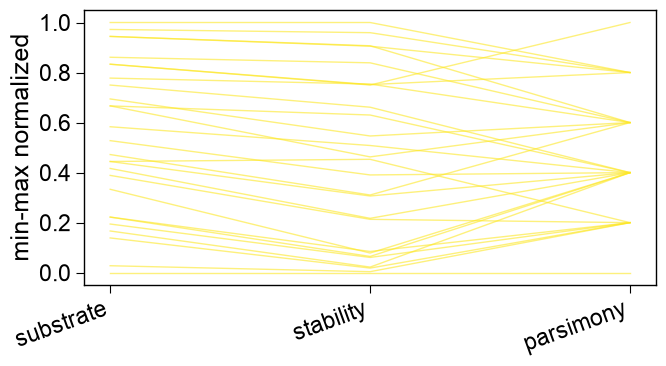

aa.plot_settings()
aa.SeqOptPlot().parallel_coordinates(
    df_pareto=df_pareto, objectives=["substrate", "stability", "parsimony"],
    front_only=True)
plt.tight_layout(); plt.show()

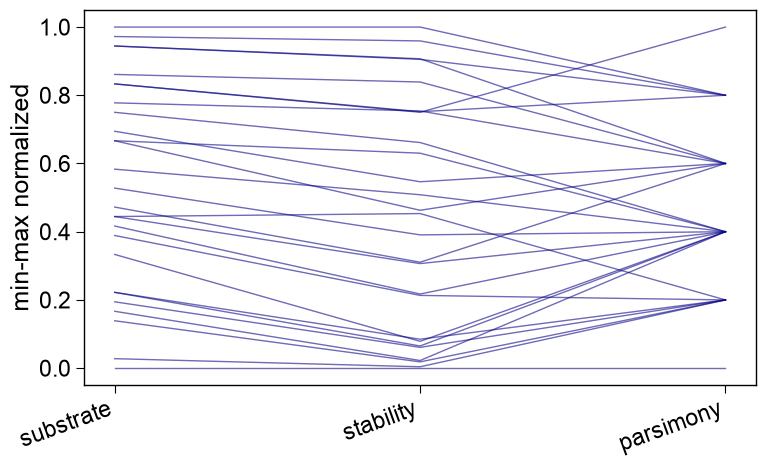

# cmap sets the rank coloring; figsize sets the figure size in inches
aa.plot_settings()
aa.SeqOptPlot().parallel_coordinates(
    df_pareto=df_pareto, objectives=["substrate", "stability", "parsimony"],
    cmap="plasma", figsize=(8, 5))
plt.tight_layout(); plt.show()
